Blast Gate Obervation Ports - Overview • Threaded • Flanged • Flanged/Threaded (F/T)
These observation ports are for low-pressure applications only.
The special model F/T Blast Gate Observation Port adds a new dimension to the Tate-Jones Line. This unit, available in 3" or 4" pipe size, mounts to a mating flange, while the viewing components are housed in a NPT threaded body half. The standard stainless steel slide arrangement in the blast gate gives added protection and life to the lens during operation, and allows maintenance to be performed with added safety during vessel down-time. Additional cooling can be obtained by adding a purge connection on the glass or vessel side of the blast gate housing.
This special half-flanged, half-threaded unit is only available in 3" and 4" sizes.
The standard unit is a Class 30 gray iron with maximum temperature of
425 °F. Custom units made from Carbon Steel and Stainless Steel by special order.

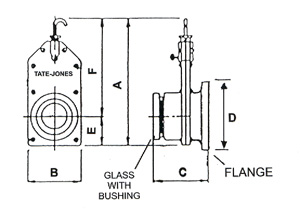

Flanged Blast Gate Valves |
Pipe Size |
Viewing Area |
A |
B |
C |
D |
E |
F |
Bolt Size |
Bolt
Circle |
Unpacked Weight |
Part Numbers |
3" |
2-1/4" |
11 |
4-5/8" |
5-3/8" |
7-1/2" |
2-7/16" |
8-9/16" |
5/8" |
4 on 6" |
18 # |
3F/TBGOP |
4" |
3-3/8" |
13-3/4" |
5-5/8" |
5-3/8" |
9" |
2-7/8" |
10-7/8" |
5/8" |
8 on 7-1/2" |
21 # |
4F/TBGOP |
Glass Options |
Type |
Thickness |
Max. Intermittent Temperature |
Max. Continuous Temperature |
Code
Letter |
Vycor Clear |
1/4" |
2192 °F / 1200 °C |
1652 °F / 900 °C |
VC |
Vycor Blue |
1/4" |
2192 °F / 1200 °C |
1652 °F / 900 °C |
VB |
Quartz Clear |
1/4" |
2048 °F / 1120 °C |
1600°F / 871 °C |
Q |
Pyrex Clear |
1/4" |
554°F / 290 °C |
446°F / 230 °C |
P |
|
