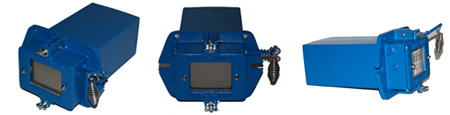

Long "E" Dimension Unit - Model No. 14 |
When the vessel has a deeper wall thickness, a longer "E" dimension is available. If a special "E" dimension is required, the unit can be modified to accommodate the specification.
The operating environment and heat should be considered when ordering type of steel and glass.
Model Number |
Viewing Area |
A |
B |
C |
D |
E |
F |
G |
H |
I |
Unpacked Weight |
11 |
2-3/4"
x
3-1/2" |
4-5/8" |
6-1/2" |
9-1/2" |
7-3/4" |
3-1/8" |
3-1/2" |
6" |
5-5/8" |
6-1/8" |
16 # |
11-DS |
2-3/4"
x
3-1/2" |
4-1/2" |
6-1/2" |
9-1/4" |
7-1/2" |
6" |
8-5/8" |
6" |
5-1/2" |
6-1/8" |
33 # |
12 |
2-3/4"
x
3-1/2" |
4-1/2" |
7-1/2" |
9-1/2" |
7-3/4" |
6-1/4" |
6-1/2" |
6" |
- |
6" |
27 # |
14 |
2-3/4"
x
3-1/2" |
4-5/8" |
6-1/2" |
9-1/2" |
7-3/4" |
9-1/2" |
3-1/2" |
6" |
5-5/8" |
6-1/8" |
26 # |
15 |
4-1/2"
x
5-1/2" |
6-1/2" |
9-1/2" |
11-1/4" |
- |
3-1/8"* |
3-1/2" |
9-3/4" |
8" |
8" |
26 # |
16 |
4-1/2"
x
5-1/2" |
6-3/8" |
9-1/2" |
11" |
- |
3-1/2"* |
8" |
9-3/8" |
8" |
7-7/8" |
33 # |
20 |
5"
x
9" |
7" |
10" |
15-1/4" |
- |
3-1/8"* |
3-1/2"* |
13-3/4"* |
8-1/2" |
11-1/4" |
38 # |
Glass Options |
Type |
Thickness |
Max. Intermittent Temperature |
Max. Continuous Temperature |
Code
Letter |
Vycor Clear |
1/4" |
2192 °F / 1200 °C |
1652 °F / 900 °C |
VC |
Vycor Blue |
1/4" |
2192 °F / 1200 °C |
1652 °F / 900 °C |
VB |
Quartz Clear |
1/4" |
2048 °F / 1120 °C |
1600°F / 871 °C |
Q |
Pyrex Clear |
1/4" |
554°F / 290 °C |
446°F / 230 °C |
P |
|
