Saf-T-Eye® Observation Ports - OverviewModel 11 Model 11-DS Model 12 (Angular) Model 14 Model 15 Model 16 (Angular) Model 20 Dimension Chart / Features Maintenance & Installation

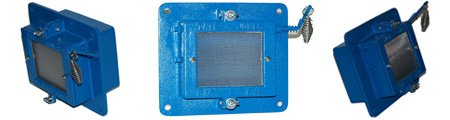

Saf-T-Eye® Observation Ports
Basic Unit - Model No. 15

The Saf-T-Eye® Basic Unit Model No. 15 is available in three metals and four types of glass. The Saf-T-Eye® Basic Unit Model No. 15-309SS is made of 309 stainless steel and is suitable for higher operating heat when equipped with higher temperature glass and gaskets.

*E-dimension inside the fixture can be extended up to 20".

The operating environment and heat should be considered when ordering type of steel and glass.

Saf-T-Eye® Observation Ports
Model Number
Viewing Area
A
B
C
D
E
F
G
H
I
Unpacked Weight
11
2-3/4"
x
3-1/2"
4-5/8"
6-1/2"
9-1/2"
7-3/4"
3-1/8"
3-1/2"
6"
5-5/8"
6-1/8"
16 #
11-DS
2-3/4"
x
3-1/2"
4-1/2"
6-1/2"
9-1/4"
7-1/2"
6"
8-5/8"
6"
5-1/2"
6-1/8"
33 #
12
2-3/4"
x
3-1/2"
4-1/2"
7-1/2"
9-1/2"
7-3/4"
6-1/4"
6-1/2"
6"
-
6"
27 #
14
2-3/4"
x
3-1/2"
4-5/8"
6-1/2"
9-1/2"
7-3/4"
9-1/2"
3-1/2"
6"
5-5/8"
6-1/8"
26 #
15
4-1/2"
x
5-1/2"
6-1/2"
9-1/2"
11-1/4"
-
3-1/8"*
3-1/2"
9-3/4"
8"
8"
26 #
16
4-1/2"
x
5-1/2"
6-3/8"
9-1/2"
11"
-
3-1/2"*
8"
9-3/8"
8"
7-7/8"
33 #
20
5"
x
9"
7"
10"
15-1/4"
-
3-1/8"*
3-1/2"*
13-3/4"*
8-1/2"
11-1/4"
38 #


Glass Options
Type
Thickness
Max. Intermittent Temperature
Max. Continuous Temperature
Code
Letter
Vycor Clear
1/4"
2192 °F / 1200 °C
1652 °F / 900 °C
VC
Vycor Blue
1/4"
2192 °F / 1200 °C
1652 °F / 900 °C
VB
Quartz Clear
1/4"
2048 °F / 1120 °C
1600°F / 871 °C
Q
Pyrex Clear
1/4"
554°F / 290 °C
446°F / 230 °C
P
